Create a new API Connection and Access Policy for connecting Your Azure Logic App to Blob Storage in Bicep

When building workflows with Azure Logic Apps (Standard), a common requirement is to connect securely to Azure resources such as Blob Storage. In this article, we’ll show how to automate the creation of API Connections and Access Policies using Bicep, enabling your Logic Apps to access Blob Storage securely. We’ll cover both authentication methods: Shared Key and Managed Identity.

Creating an API Connection with a Shared Key

A shared key is a traditional way to authenticate to an Azure Storage Account. You retrieve the storage account key and use it in your connection definition in your Bicep file:

var location = resourceGroup().location
var storageAccountName = 'yourStorageAccountName'

resource storageAccount 'Microsoft.Storage/storageAccounts@2022-09-01' existing = {
  name: storageAccountName
}

resource blobStorageConnectionWithSharedKey 'Microsoft.Web/connections@2018-07-01-preview' = {
  name: 'name-of-your-connection'
  kind: 'V2'
  location: location
  properties: {
    displayName: 'name-of-your-connection'
    api: {
      id: '/subscriptions/${subscription().subscriptionId}/providers/Microsoft.Web/locations/${location}/managedApis/azureblob'
    }
    parameterValues: {
      storageaccount: storageAccountName
      sharedkey: listKeys(storageAccount.id, storageAccount.apiVersion).keys[0].value
    }
  }
}

Key points:

Once the API Connection is created, you can use it in your Logic App workflows. For example, add a Get blob content (V2) action to your workflow.

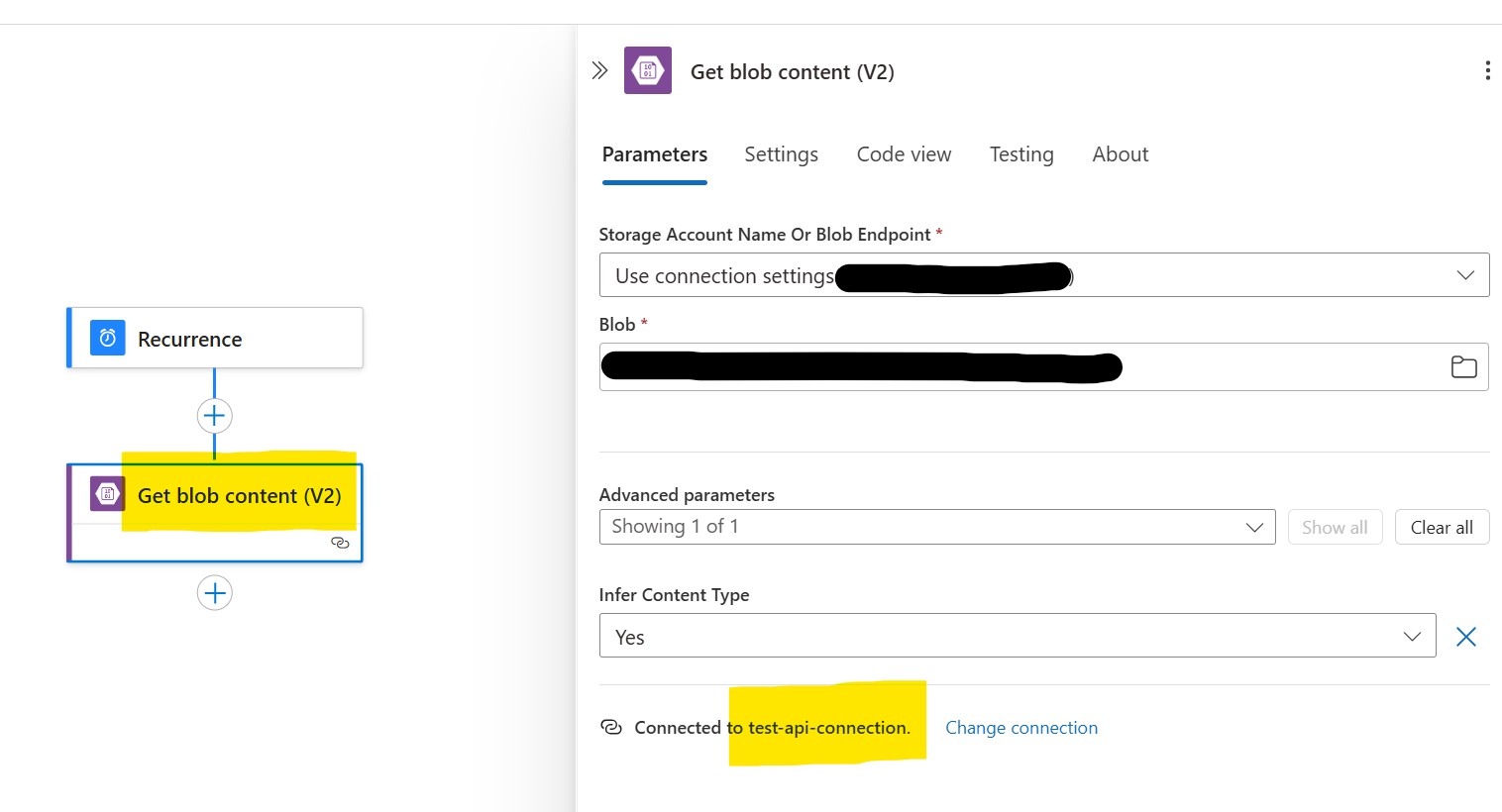

An Azure Logic App gets a blob content by using an Api Connection

Note: The V2 actions in Logic Apps use API Connections, while older actions use Service Provider Connections.

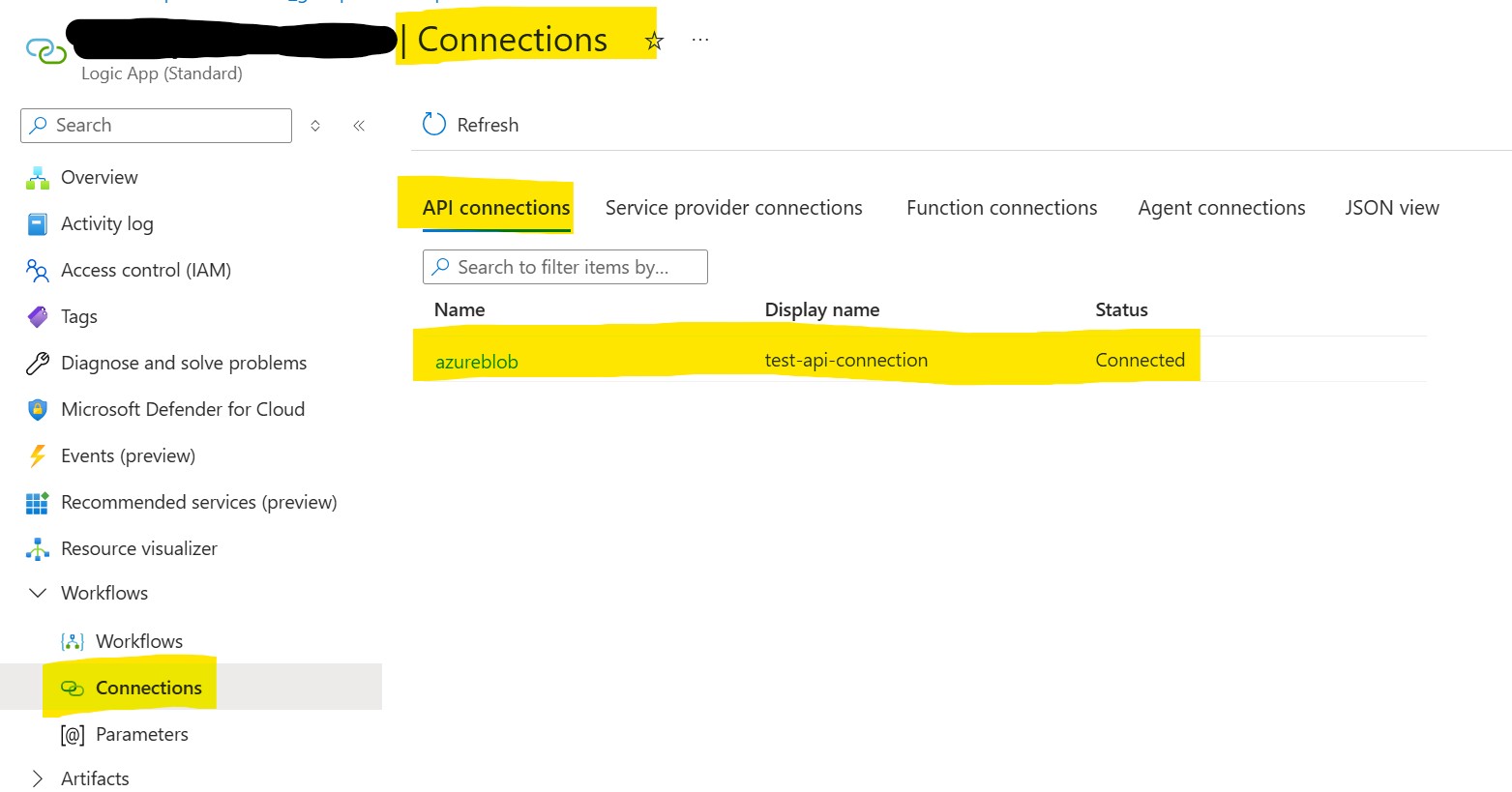

A list of the Api Connections available to a Logic App

Creating an API Connection with a Managed Identity

Managed Identities provide a more secure and modern way to authenticate. Assign a User or System Managed Identity to your Logic App, grant it access to the Storage Account, and create an Access Policy for the API Connection.

Assuming you have already created a User Assigned Managed Identity, here’s how to automate the setup:

resource userManagedIdentity 'Microsoft.ManagedIdentity/userAssignedIdentities@2023-01-31' existing = {
  name: 'name-of-your-managed-identity'
}

resource blobStorageConnectionWithManagedIdentity 'Microsoft.Web/connections@2018-07-01-preview' = {
  name: 'name-of-your-connection'
  location: location
  kind: 'V2'
  properties: {
    displayName: 'name-of-your-connection'
    api: {
      id: '/subscriptions/${subscription().subscriptionId}/providers/Microsoft.Web/locations/${location}/managedApis/azureblob'
    }
    parameterValueSet: {
      name: 'managedIdentityAuth'
      values: {}
    }
  }
}

resource blobConnectionAccessPolicy 'Microsoft.Web/connections/accessPolicies@2018-07-01-preview' = {
  parent: blobStorageConnectionWithManagedIdentity
  name: 'name-of-your-access-policy'
  location: location
  properties: {
    principal: {
      type: 'ActiveDirectory'
      identity: {
        objectId: userManagedIdentity.properties.principalId
        tenantId: subscription().tenantId
      }
    }
  }
}

Key points:

As with the Shared Key method, V2 actions in Logic Apps use API Connections, while older actions use Service Provider Connections.
